2 Post Gantry Car Lift

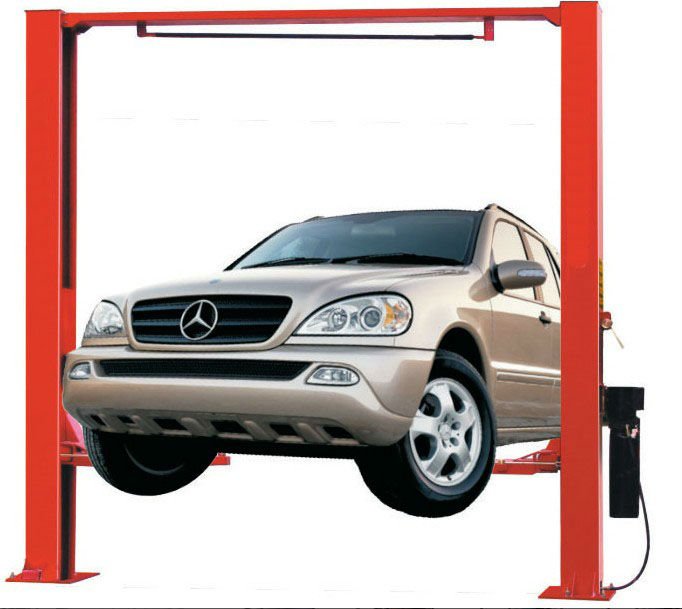

  • BY-232BA, Dual hydraulic cylinders, chain-driven lifting system; B, Strong and reliable steel cables assure the ascends and descends smoothly; C, Two sides manual safety lock release system;

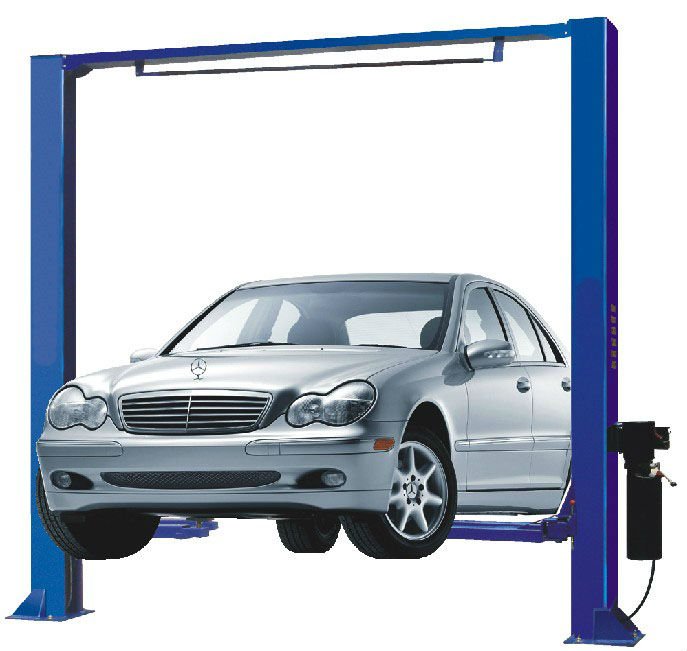

  • BY-232DA, Super strong base frame for safety and stability; B, Dual hydraulic cylinders, chain-drive lifting system; C, Strong and reliable steel cables assure the ascends and descends smoothly;

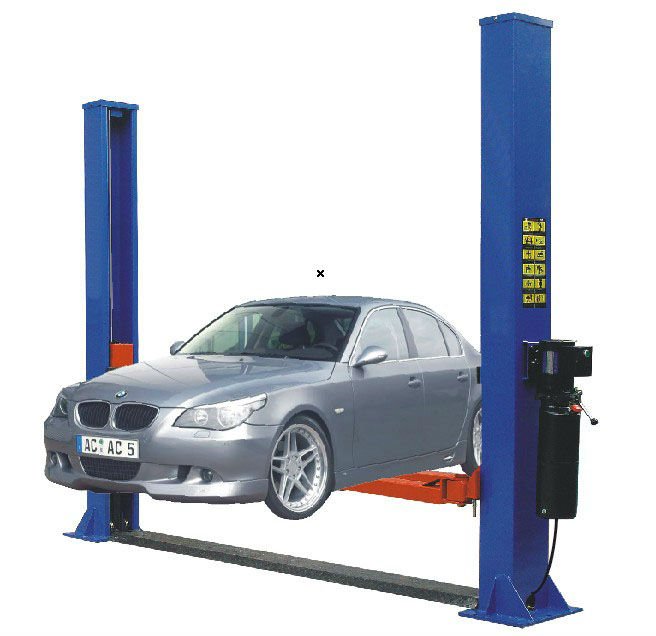

  • BY-235DA, Clear floor design is more convenient for vehicle service, B, Two sides manual safety lock release system, single point release for optional; C, Japanese and American oil seals ensure the perfect performance of oil cylinder;

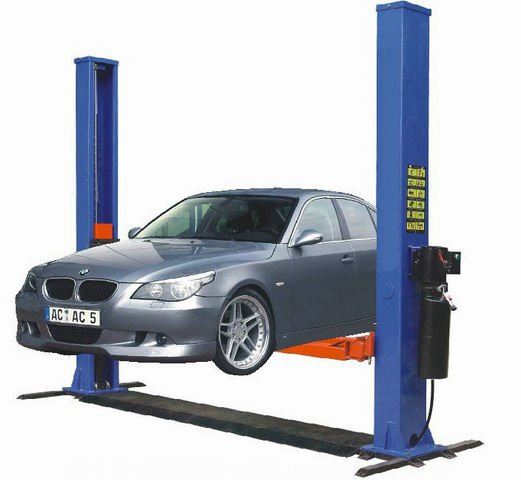

  • BY-245MA, Clear floor design is more convenient for vehicle service; B, Two sides manual safety lock release system and single point release for optional C, Japanese and American oil seals ensure the perfect performance of oil cylinder;

Description of China Double Cylinder Car Lift

Double column gantry car lift can save a lot of floor space and it is easy for ground handling. To guarantee its safety, the car lift has high quality columns and platforms, strong rigidity lifting arms lock structure and cylinder rope.
Two post lift has symmetrical and asymmetric structures. Symmetrical lift has virtually the same arm length for all of its four arms so as to concentrate the car's center (BabyCenter) in the middle of the post. This symmetrical double column gantry car lift is the optimal choice for the daily maintenance of pickups and vans. Asymmetric lift's post can be turned back at a certain angle (about 30°). When cars are stopped at a proper place on the asymmetric lift, they will move backwards a little bit, so we can get into the car through the doors easily. Besides, this kind of asymmetric life's rotating post of China double cylinder car lift can ensure that cars' center-of-gravity is located right between the posts.


Features of Double Column Gantry Car Lift

1. Dual hydraulic cylinders and chain-driven lifting system.
2. Strong and reliable steel cables assure the ascends and descends smoothly.
3. Two sides manual safety locks release system, single point release for optional.
4. Asymmetric arms design of double column gantry car lift provides more open-door clearance between pillars.
5. Economical but reliable cast-iron cover motor.
6. Super strong base frame for more safety and stability.
7. Japanese and American oil seals of China double cylinder car lift ensure the perfect performance of oil cylinder.
8. Clear floor design more convenient for vehicle service.
9. The following spare parts of double column gantry car lift are optional: aluminum cover motor, imported pump and multi-voltage power supply.


Specifications of BY-232B

Lifting Capacity 7714lbs/3500kg
Lifting Height 71"/1800mm
Lifting Time 50 seconds
Overall Height 111"/2816mm
Overall Width 138"/3500mm
Width between Columns 110"/2800mm
Motor Voltage 220V/380V
Frequency 50Hz/60Hz
Phase 1ph/3ph
Net weight 1417lbs/643kg
