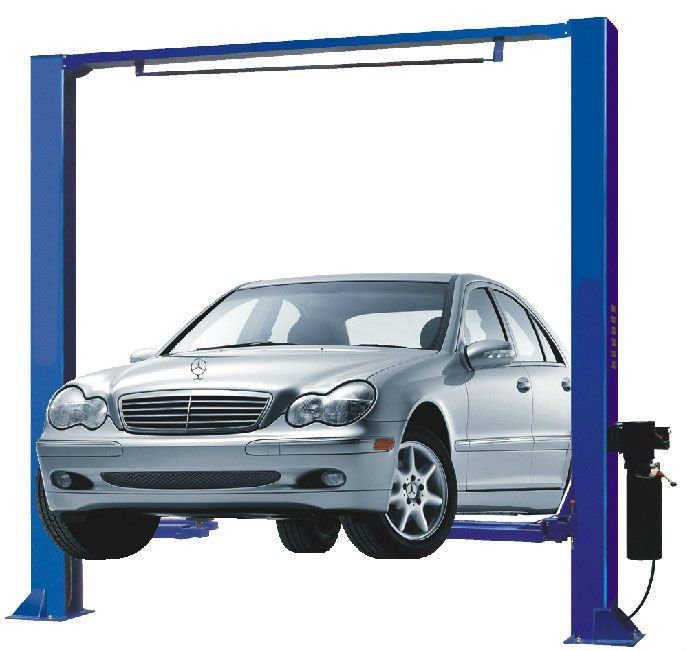

2 Post Gantry Car Lift
Features
A, Clear floor design is more convenient for vehicle service,B, Two sides manual safety lock release system, single point release for optional;
C, Japanese and American oil seals ensure the perfect performance of oil cylinder;
D, Asymmetric arms design provides more place for the vehicles within the width 2850mm;
E, Economical but reliable cast-iron cover motor.
F. the following spare parts are optional: aluminum cover motor, imported pump and multi-voltage power supply.
Parameter
| Lifting Capacity | 7714lbs/3500kg |
| Lifting Height | 71"/1800mm |
| Lifting Time | 50seconds |
| Overall Height | 112"/2856mm |
| Overall Width | 138"/3500mm |
| Width between Columns | 109"/2760mm |
| Motor Voltage | 220V/380V |
| Frequency | 50Hz/60Hz |
| Phase | 1ph/3ph |
| Net weight | 1439lbs/653kg |
