Infrared Lamp

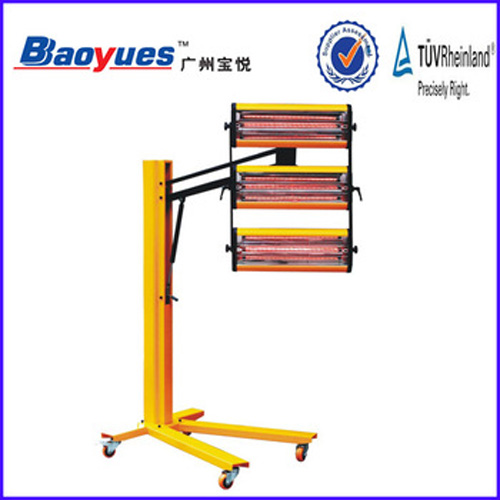

Description of Infrared Lamp

The high quality IRA Shortwave infrared heating tube of China infrared heating lamp adopts advanced technology from German and is identified by international special light source laboratory. It can last more than 8000 hours. With the adoption of 304 stainless steel reflective plate, the light’s two sides adopt die-cast aluminum to prevent high temperature and deformation. This infrared lamp can be used to paint part of the cars which is convenient, time saving and cost saving.


Advantages of China Infrared Heating Lamp

1. Compared with middle-wave and long-wave infrared, the short-wave of infrared lamp has strong penetration and the temperature of the body shell can rise quickly.
2. The coating moisture volatilize quickly from inside to outside in the same chemical frequency. The paint syntony can increase the possibility of the cross-link and accelerate the curving of the layer.
3. The paint surface is gloss and full, the mirror is clearer and the coating adhesion is string.
4. It can reduce cost, avoid rework and improve efficiency.


Product features

1. Lampshade of China infrared heating lamp is made of aluminum alloy and stainless steel.
2. 21inch high quality short-wave infrared lamp
3. With microcomputer control board, match digital display timing, digital display power setting
4. Pneumatic automatic lifts can rotate 30 degrees; can be bake into the small car with any location
5. Ultrasonic pule function
6. Temperature adjust function
7. Independent control every light


Baking Features of China Infrared Heating Lamp

1. Cut down the energy cost to 75%
2. Working life of infrared lamp is 5000-7000 hours
3. Longest cure times is 15 minutes or so
4. Penetrate the metal plate until finish baking
5. Paint cured within few minutes without dust operating.
6. Less maintenance time and less post processing


Parameters of Infrared Lamp

Type Power supply Power Baking area Temperature Setting Baking distance Baking time Track size
60WA 200-400V 50/60Hz 1000W×6 1800×1000mm 40℃-100℃ 0min-99min 400mm-500mm Putty 4min-6min None
Undercoat 6min-8min
Finish 8min-15min
30WA 200-240V 50/60Hz 1000W×3 1200×1000mm 40℃-100℃ 0min-99min 400mm-500mm Putty 4min-6min None
Undercoat 6min-8min
Finish 8min-15min
30W 200-240V 50/60Hz 1000W×3 1200×1000mm 40℃-100℃ 0min-99min 400mm-500mm Putty 4min-6min None
Undercoat 6min-8min
Finish 8min-15min
30A 200-240V 50/60Hz 1000W×3 1200×1000mm 40℃-100℃ 0min-99min 400mm-500mm Putty 4min-6min None
Undercoat 6min-8min
Finish 8min-15min
30B 200-240V 50/60Hz 1000W×3 1200×1000mm 40℃-100℃ 0min-60min 400mm-500mm Putty 4min-6min None
Undercoat 6min-8min
Finish 8min-15min
20A 200-240V 50/60Hz 1000W×2 800×800mm 40℃-100℃ 0min-60min 400mm-500mm Putty 4min-6min None
Undercoat 6min-8min
Finish 8min-15min
60H 200-400V 50/60Hz 1000W×6 2000×1000mm 40℃-100℃ 0min-99min 400mm-500mm Putty 4min-6min 6800
Undercoat 6min-8min
Finish 8min-15min
