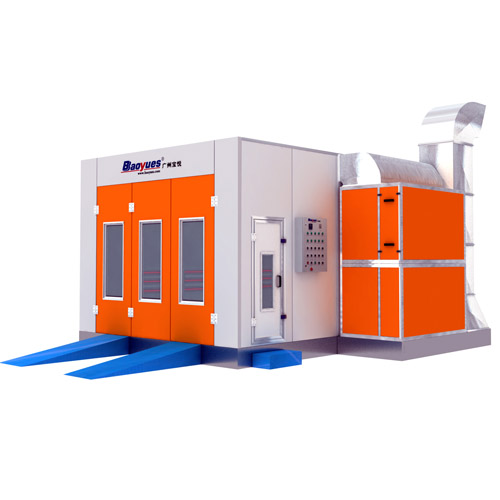

Infrared Spray Booth

Description

The air flow of infrared spray booth is from the top to the bottom. It adopts infrared light to heat the painting. It is convenient and offers workers better working environment. The balanced indoor temperatures make good painting effect. However, the China moveable paint booth takes more space and has higher cost. This China moveable paint booth can be used to paint bright products and products that need to add color like furniture and sheet metal.


Features

1. Infrared spray booth doesn’t need a diesel as fuel, only environmental infrared lamps for heating.
2. Booths are constructed from 18 gauges, prime-quality galvanized steel
3. All panels are tongue and groove interlock structure
4. 10 units short wave infrared lamps for heating
5. Quality brand-name double-intake centrifugal fans
6. Industry-leading light levels
7. The infrared pray booth has specific and dual voltage 36-watt light fixtures.
8. The China moveable paint booth includes installation instructions, fan, motor and drive, fasteners, hardware, and necessary sealant for assembly.
9. Control panel and other electric components can be purchased separately
10.The following spare parts of infrared spray booth are optional: exhaust system, side light, recovery system, Siemens motor, Siemens electric component, rock wool panel, PU panel, full grilles, PLC control and LED lights.

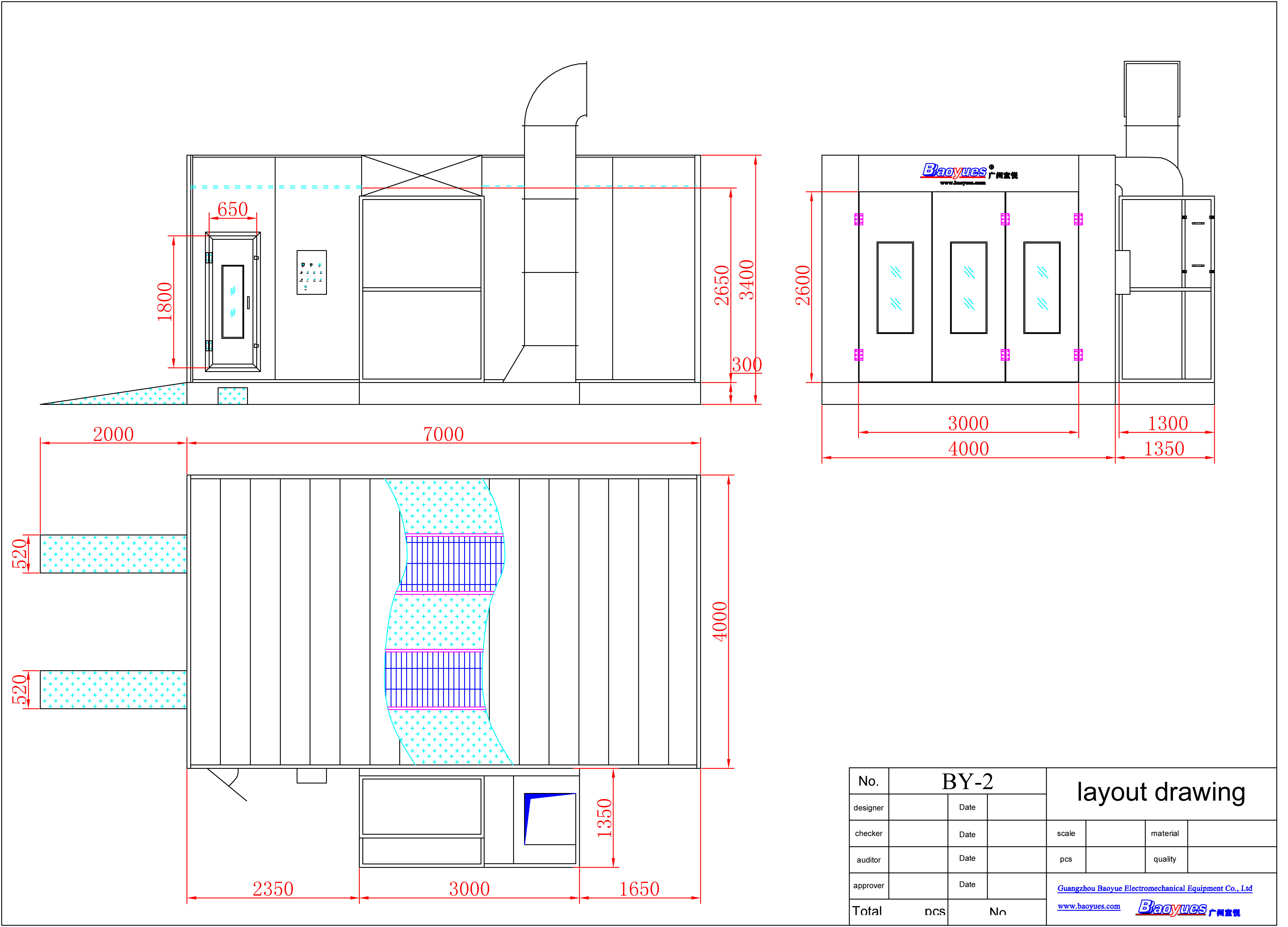

Parameters of China Moveable Paint Booth

Item Detailed Specification
Inside dimension 6900×3900×2650 mm (L×W×H)
Outside dimension 7000×5350×3400mm (L×W×H)
Front door Folding door, 3 folds, 3000×2600 mm (W×H), without frame, aluminium alloy window frame, orange colour, door head and two batten on both sides white colour.
Emergency door 1 units, 650×1800mm (W×H), colour: white.
Basement Galvanized steel assemble, 300mm high, galvanized steel bending support, 2 rows grilles made by flat bar and twisted steel, silver, 3 rows indented plate, silver colour, 2 ramps, 520×2000mm/pc, silver colour.
Wall panel Thickness: 50mm, :1150mm, tongue and groove structure, 0.376mm colour steel with EPS inside, colour: white.
Light Ceiling Lights: 8Units×4Pcs=32Pcs×36W, no side lights, with electronic ballasts, lighting boxes are powered coated.
Generator cabinet Intake from side upper, exhaust from rear upper, galvanized steel frame; orange machine-made panel covered, filled with heat preservation material inside.
Intake and Exhaust system Inlet: 2×3KW centrifugal fan, model: YDW4.5M1, air capacity for each fan: 10500m3/h.
Outlet: optional, 4m ducts, 1 pcs 900 bend.
Heating system 10 sets infrared heating, with magnetism sensor, 3PCS/set, 1KW/PCS, halogen tube, total power: 30KW, max temperature 80℃.
Purification system Pre-filter, ceiling filter, fibreglass filter.
Roof Galvanized steel
Control system Spraying, baking, time setting, lighting switch, thermostat, power supply switch, emergency stop, all motors is normal start.
Total power 38KW (Power supply 1×220V, 3×380V, 50HZ)
Unit price USD/set FOB Guangzhou
