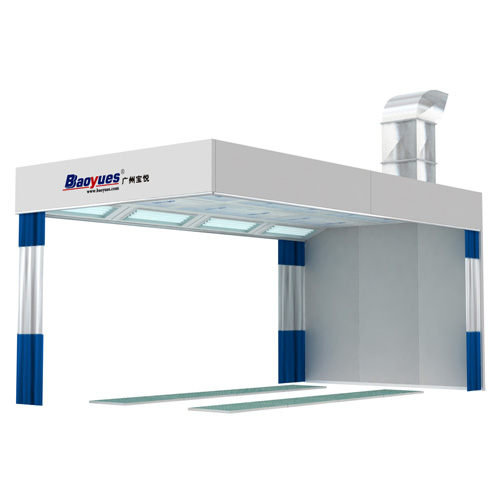

Prep Station BY-20

Description

The car painting prep station draws fresh air from the cleaner upper levels of the shop through a pressurization fan. This air is forced down into the prep station through a filter bank located in the ceiling near the entry. The air is drawn from the prep station work area into a filtered exhaust plenum at the opposite end and exhausted to the atmosphere through the exhaust fan and stack.
This design allows for easy addition of a heated air makeup unit. Panels, assembly hardware, filters and sealants needed for mechanical installation are included. The back side of portable paint prep station is equipped with 50mm EPS wallboard and the other three sides with PVC curtains. Besides that, the intake and exhaust stack, control panel and other electrical components of car painting prep station can be purchased separately. The portable paint prep station is mainly used for auto or other machine polishing and painting.


Features of Car Painting Prep Station

No basement, 2 rows of pits in the ground for outlet. It has galvanized grilles made by flat bar and twisted steel. The following spare parts of portable paint prep station are optional: infrared lamp; heating system; full grilles basement, recovery system, Siemens motor and Siemens electric components.


Parameters of Car Painting Prep Station

Item Detailed Specification
Inside dimension 6300×3450×2650 mm (L×W×H)
Outside dimension 7550×3550×3100mm (L×W×H)
Plenum dimension 6300×3450×450 mm (L×W×H)
Steel basement No steel basement, exhaust from 2 lines pit.
Room body Back side 50mm EPS wall panel, the other sides PVC curtain.
Light Ceiling Lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, lighting boxes are powered coated.
Generator cabinet Exhaust from back side, galvanized steel frame; white machine-made panel covered, filled with heat preservation material inside.
Intake and Exhaust system 1×5.5KW turbo fan, air capacity: 18000m3/h, with electric damper.
Purification system Pre-filter, ceiling filter, fibreglass filter.
Roof Galvanized steel
Control system Fan switch, lighting switch, emergency stop.
Installs way Hooked from roof by steel cable or supported by steel column.
Total power 6.7KW (Power supply 1×220V, 3×380V, 50HZ)
Unit price USD/set FOB Guangzhou
