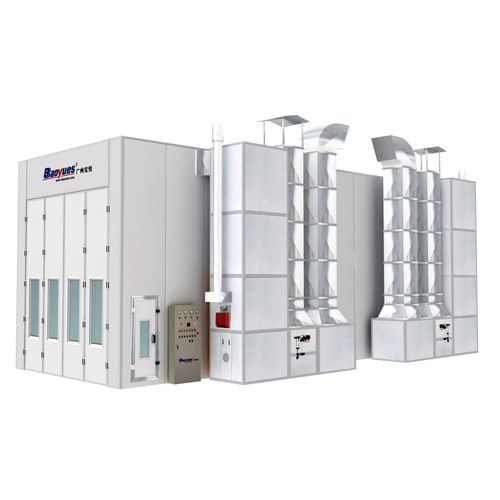

Bus Spray Booth

Description

Bus spray booth is mainly used for the painting of bus, train, airplane, etc. the space is larger than other standard barn. This truck spray booth ventilated through the trench and air flows from the top of the house to the bottom. This kind of China truck spray booth is convenient for use and offers good working environment for workers. The indoor paint temperature is balanced and paint effects are excellent.


Features of Bus Spray Booth

1. 0.476mm color steel with rock wool inside for wall panel
2. turbo fan, with air capacity of 25000m³/h
3. Pneumatic damper for spraying baking circle.
4. All panels of bus spray booth are tongue and groove interlock structure
5. Industry-leading light levels
6. Spray booth specific, dual voltage 58-watt light fixtures
7. This China truck spray booth includes installation instructions, fan, motor & drive, fasteners, hardware, and sealant necessary for assembly.
8. Control panel and other electric components can be purchased separately
9. The following spare parts of bus spray booth are optional: Heat recovery system, PLC control system, Siemens motor, Siemens electric component, Rock wool panel, PU panel and LED lights.


Working process of China Truck Spray Booth

During painting, outside fresh air comes into the heating generators through the pre-filter system. Then it enters into the plenum, filtered by ceiling filter and enters into the booth. This brings clean, symmetrical and steady-going down airflow for spraying. After painting, hot air goes from heating generators to plenum, and then enters room after filtered by ceiling filter. The air of bus spray booth provides necessary heat for baking car’s surface. Afterwards, the air with little benzene will be released to the atmosphere after being filtered twice by the exhaust air filter.


Parameters of China Truck Spray Booth

Item Detailed Specification
Inside dimension 15000×5000×5000 mm (L×W×H)
Outside dimension 15140×6640×5600mm (L×W×H)
Front door Folding door, 4 folds, 4000×4500 mm (W×H), galvanized steel frame, cold plate powder coated window frame, white colour.
Emergency door 2 units, 800×2000mm (W×H), colour: white.
Basement No steel basement, 2 lines pits in the ground for the exhaust, size of each pit: 13850×760mm(L×W), with galvanized twisted grilles above.
Wall panel Profiled bar beams in the roof to strengthen the room body, thickness: 70mm, :1150mm, tongue and groove structure, 0.476mm colour steel with EPS inside, colour: white.
Light Ceiling Lights: 18Units×4Pcs=72Pcs×36W, side lights: 12Units×2Pcs=48Pcs×36W, up and down interleaving installation, with electronic ballasts, lighting boxes are powered coated.
Generator cabinet Intake from back upper, exhaust from rear upper, quadrate steel frame; white machine-made panel covered, filled with heat preservation material inside.
Intake and Exhaust system Inlet: 2×11KW turbo fan, air capacity for each fan: 30000m3/h.
Outlet: 2×11KW turbo fan, air capacity for each fan: 30000m3/h.. Manual damper, 16m ducts, 2 pcs 900 bend, 2 pcs 300 bend, 2 pcs intake hoop.
Heating system 2 sets Italy RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 520000kcal/h, max temperature: 80℃, 8pcs chimney, 2 pcs bend.
Purification system Pre-filter (pocket type), ceiling filter, fibreglass filter, activated carbon filter (pocket type).
Roof 50mm EPS panel.
Control system Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meater, temperature limiter, all motors is reduced voltage starting.
Total power 50KW (Power supply 1×220V, 3×380V, 50HZ)
Unit price USD/set FOB Guangzhou
