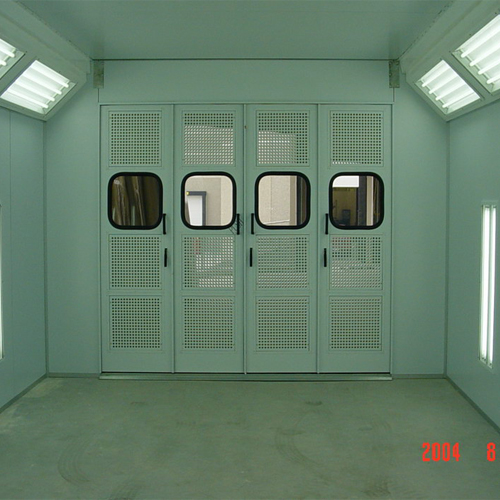

Cross Flow Spray Booth
Description of China Cross Draft Paint Booth
Our cross flow spray booth draws fresh air through filters. The clean filtered air is pulled through the booth and then exhausts through a filter system on the other end. This type of exhaust chamber offers great inside working space and make efficient use of shop space. The filtered exhaust air is pulled through the exhaust plenum and discharged into the air. We also can customize China cross draft paint booth according to your needs.Parameters of Cross Flow Spray Booth
| Cross Flow Spray Booth | |
| Item | Detailed Specification |
| Outside dimension | 4000mm×1250mm×2300mm (L×W×H) |
| Exhaust fan | 2 pcs Axial flow fans, model:SF7G-4, power:3KW, air capacity:24500m3/h |
| Water curtain | 1.5mm stainless steel |
| Intake and Exhaust Square duct | Exhaust duct, duct elbow. |
| Exhaust filter | Water curtain adsorption filter |
| Water curtain structure | 1.5mm stainless steel tank, 0.8mm stainless steel water curtain board. |
| Water circulation system | Pump model: G50-12.5A, pipe pump, water flow:21m³/h, water path:10 meters,power:1.5KW,water pipe: PVC duct. |
| Control system | Regular relay control, fan switch. |
| Total power | 6KW |
