Single Station Prep Station

Description

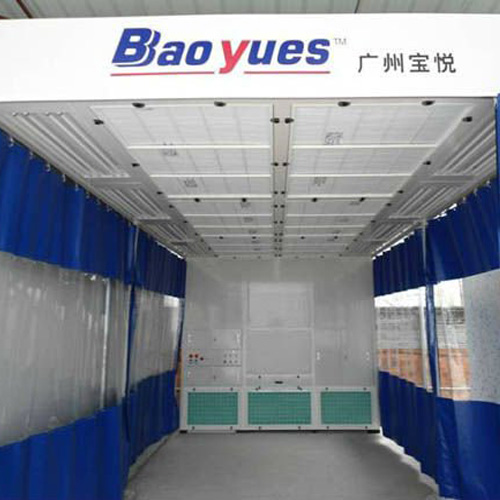

This China car paint prep station adopts 50mm EPS wallboard on the back side and PVC curtains on the other three sides. Workers work in this prep station and because of ventilation and dust removal system and exhaust fan, the room has negative pressure. The dust air produced during grinding is limited in prep station and collected by dust unit. After filtration, it is exhausted. This process of car painting prep station can control dust leakage and protect production environment.


Advantages

1. The overall structure of China car paint prep station is light, novel and attractive. It has good strength, stiffness, stability and impact resistance.
2. The front and two sides of this equipment adopts electric roller shutter which is controlled by remote control. The operation is convenient.
3. Top plenum of car painting prep station adopts cold rolled steel bending spray forming, assembled roof uses bending galvanized sheet.
4. The platform of China car paint prep station adopts integral anti-dust wind exhaust platform and the walking platform is combined with checkered board and high intense grid.
5. The rear wall adopts insulation board.
6. The following spare parts of car painting prep station are optional: infrared lamp, heating system, basement, recovery system, Siemens motor, and Siemens electric components.


Features of China Car Paint Prep Station

Bright full booth illumination is provided by eight (8) four-tube, 36-watt, fluorescent light fixtures in the ceiling panels. Each is sealed behind clear tempered safety glass. All fixtures of car painting prep station are made by China and approved for their intended use and placement.


Parameters of Car Paint Prep Station

Outside Dimension 7550×3550×3100mm(L×W×H)
Inside Dimension 6300×3450×2650mm(L×W×H)
Plenum Dimension 6300×3450×450mm(L×W×H)
Room Body Back side with 50mm EPS wallboard, the other 3 sides with PVC curtains;
Light Ceiling lights 8units×4pcs=32pcs×36W, with electronic ballasts
Generator Cabinet Exhaust from rear side; square steel frame, galvanized steel cover.
Intake and Exhaust System 1 unit 5.5KW double intake centrifugal fan, model YDW-4.5S, air capacity: 15500 m 3/h, electric damper for exhausting.
Purification System Pre-filter, high efficiency filter, exhaust fiberglass filter
Roof Galvanized steel
Control System Fan operation switch, lighting switch, emergency stop;
Install Say Suspending steel hook from roof of building or steel column supporting;
Total Power 6.7KW
