4 Post Alignment Lift

  • BY-440D1. Driven by hydraulic cylinder in stable lifting and lowering, it is used for lifting various small and medium-sized vehicles, with total weight of 4tons,
  • BY-440C1. Driven by hydraulic cylinder in stable lifting and lowering, it is used for lifting various small and medium-sized vehicles, with total weight of 4tons,
  • BY-440A1. Driven by hydraulic cylinder in stable lifting and lowering, it is used for lifting various small and medium-sized vehicles, with total weight of 4tons,
  • BY-4101. Driven by hydraulic cylinder in stable lifting and lowering, it is used for lifting various small and medium-sized vehicles, with total weight of 4tons,
  • BY-3201. It’s an ideal choice for simple vehicle services and vehicle maintenance for garage and parking lots. 2. The single point lock is simple and convenient. 3. The low profile design is for easier driving-in.

Description

The four post vehicle lift is a professional mechanical lifting device for repairing and maintaining heavy-tonnage cars or trucks. It is especially suitable for the positioning of the cars’ four wheels. Most hydraulic car alignment lifts have a four wheel positioning location which can adjust and keep the horizontal place. According to its structure, the alignment lift is classified into upper oil cylinder and lower oil cylinder.


Advantages

To ensure people’s safety, our four post vehicle lift has the highest industry quality standards. With the adoption of our open front design on our four post alignment lifts, our vehicle lift allows you access the front wheel adjustment points in an all round way. Our hydraulic car alignment lift located the cylinder under the track and there is no power beam. This design can eliminate the risk of damage to doors and mirrors.


Features

1. Our four post vehicle lift is driven by hydraulic cylinder in stable and lowering conditions. It is used to lift various small and medium sized vehicles with total weight of 4 tons, 5.5tons, 8 tons and up to 20 tons in garage and workshop.
2. The safety latches of hydraulic car alignment lift can guarantee its safety.
3. The four steel cables move synchronously and it can proof skidding efficiently.
4. Adjustable distance between runways of four post vehicle lift can accommodate different wheel tracks.
5. It is equipped with jack trolley guide rail.
6. The electric jack, pneumatic jack or manual jack is optional.

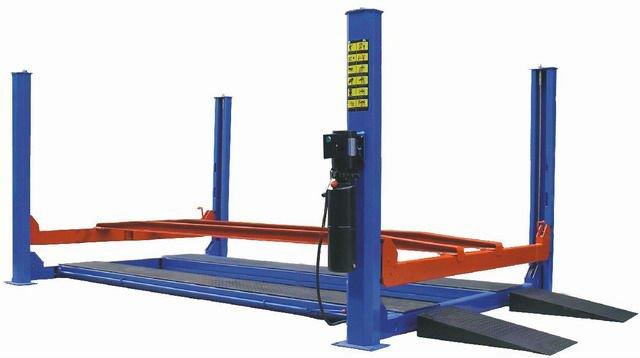

Specification of BY-440D Hydraulic Car Alignment Lift

Lifting Capacity 9000Lbs/4000kg
Lifting Height 65"/1650mm
Lifting Time 50seconds
Overall Height 80"/2020mm
Overall Width 124"/3140mm
Overall Length 183"/4650mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 2645bls/1200kg
