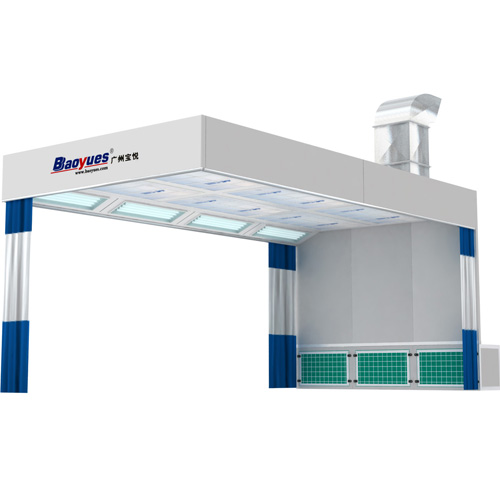

Prep Station BY-10


This paint preparation station is used to collect dust and iron splash during grinding and make working environment clean and tidy. This China prep station spray booth can centralize treat the dust, splash iron and other debris and make production safely.
This paint preparation station adopts 50mm EPS wallboard on its back side and PVC curtains on the other three sides. Workers operated this machine in this paint preparation station. With the adoption of ventilation and dust removal system exhaust fan, the room is in negative pressure condition and dust produced during production is limited in prep stations. It is collected by dust unit and exhausted after filtration by filter dust. This process of China prep station spray booth can control the dust exhaust effectively and protect production environment.


Bright full booth illumination of paint preparation station is provided by eight (8) four-tube, 36-watt fluorescent light fixtures in the ceiling panels. Each is sealed behind clear tempered safety glass. All fixtures are made by China and approved for their intended use and placement.

Advantages of China Prep Station Spray Booth

1. The overall structure of paint preparation station is welded seamlessly with square steel tubes. This frame structure has high solidity and strong supporting force. The prep station wouldn’t shake when several people work at the same time. After paint handling, this prep station can be used in wet environments for a long time. The surface is not easy to paint stripping, rust and alkalinity.
2. Polished table of paint preparation station uses perforated plates and it has high hardness. With the support of frames, the product won’t change shape and ensure even surface.
3. The following spare parts of China prep station spray booth are optional: infrared lamp, heating system, basement, and recovery system.

Parameters of Paint Preparation Station

Item Detailed Specification
Inside dimension 6300×3450×2650 mm (L×W×H)
Outside dimension 7550×3550×3100mm (L×W×H)
Plenum dimension 6300×3450×450 mm (L×W×H)
Room body Back side EPS wall panel, the other sides PVC curtain.
Light Ceiling Lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, lighting boxes are powered coated.
Generator cabinet Exhaust from back side, galvanized steel frame; white machine-made panel covered, filled with heat preservation material inside.
Intake and Exhaust system 1×5.5KW turbo fan, air capacity: 18000m3/h, with electric damper.
Purification system Pre-filter, ceiling filter, fibreglass filter.
Roof Galvanized steel
Control system Fan switch, lighting switch, emergency stop.
Installs way Hooked from roof by steel cable or supported by steel column.
Total power 6.7KW (Power supply 1×220V, 3×380V, 50HZ)
Unit price USD/set FOB Guangzhou
