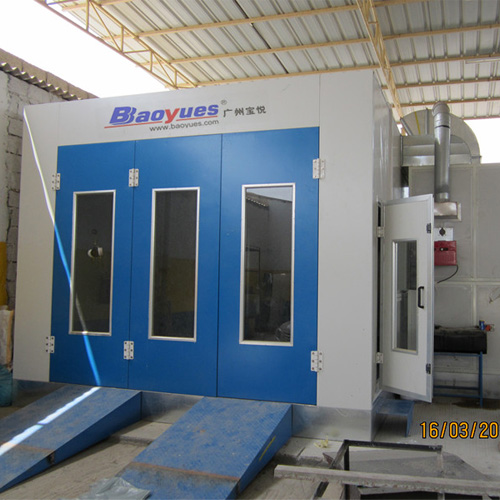

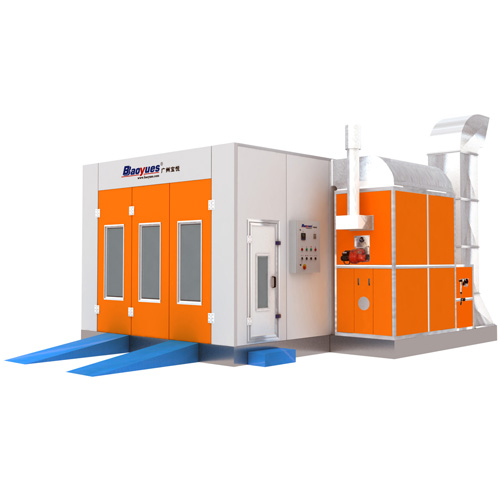

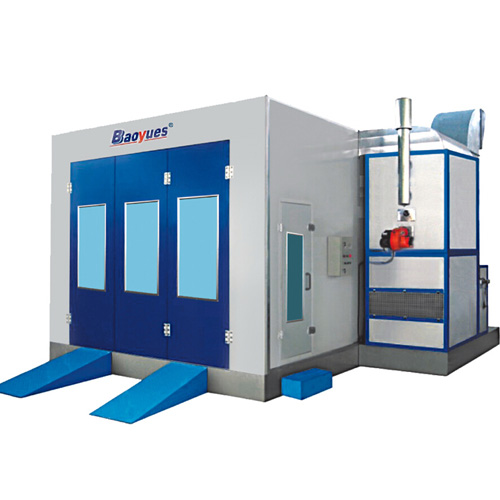

Standard Spray Booth

Description

Spray booth means the booth that is used to paint articles and dry the paints. You can install shiny things or add colors to the furniture and sheet metal with it. Our main products include spray booth with water-borne paint system, bus spray booth, dry spray booth, water curtain spray booth, China portable spray paint booth and so on.
The air of car paint spray booth comes from the upside to downside. This type spray booth is convenient and offers good working environment for workers. The indoor painting temperature is balanced and it has good effect for painting. The disadvantages of it are complicated installation, big location space and high cost.
The following spare parts are optional: Exhausting system, Side lights, Recovery system, Siemens motor, Siemens electric, component Rock wool panel, PU panel, Full grilles, PLC control and LED lights.


Features of China Portable Spray Paint Booth

1. The car paint spray booth is constructed by 18 gauge and excellent galvanized steel.
2. All panels are tongue and groove interlock structure.
3. Quality turbo fan.
4. Industry leading light levels.
5. Dual voltage 36-watt light fixtures for spray booth specifically.
6. The car paint spray booth includes installation instructions, fan, motor and drive, fasteners, hardware and sealant necessary for assembly.
7. You can purchase control panel and other electric components separately.
8. Pneumatic damper of China portable spray paint booth is used for spraying. Working process of Car Paint Spray Booth 1.For painting, outside fresh air comes into the heating generators through the pre-filter system and enters into the plenum and then is filtered by ceiling filter. After all of that, the symmetrical and steady-going down airflow goes into the booth.
2.After painting, hot air goes from heating generators to plenum, then enters room after filtered by ceiling filter, providing heat that is necessary for baking of cars surface. Afterwards, the air with little benzene will be released to the atmosphere after being filtered one time by the exhaust air filter.


Spare parts of Car Paint Spray Booth

Item Detailed Specification
Inside dimension 6900×3900×2650 mm (L×W×H)
Outside dimension 7000×5250×3400 mm (L×W×H)
Front door Folding door, 3 folds, 3000×2600 mm (W×H), without any frame, color: Blue
Emergency door 1 units, 650×1800mm (W×H), color: white
Basement Galvanized steel, 300mm high, 2 rows grilles and 3 rows of indented plates, painted.2pcs ramps.520×2000mm (W×L).
Wall panel Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.376mm color steel with EPS insulation inside, color: white.
Light Ceiling Lights: 8Units×4Pcs=32Pcs×36W,with electronic ballasts, illuminate>700lux
Generator cabinet Intake from rear side, exhaust from back upper, quadrate steel frame; galvanized steel covered, filled with heat preservation material in the middle.
Intake and Exhaust system Inlet:1×7.5KW turbo fan, air capacity for each fan: 21000m3/h
Heating system BT18 diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 180000kcal/h, maximum temperature:80℃
Purification system Pre-filter, ceiling filter, fiberglass filter
Roof Galvanized steel
Control system Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, power supply switch, emergency stop, temperature limit controller
Total power 9.5KW (1×220V,3×380V,50Hz)
