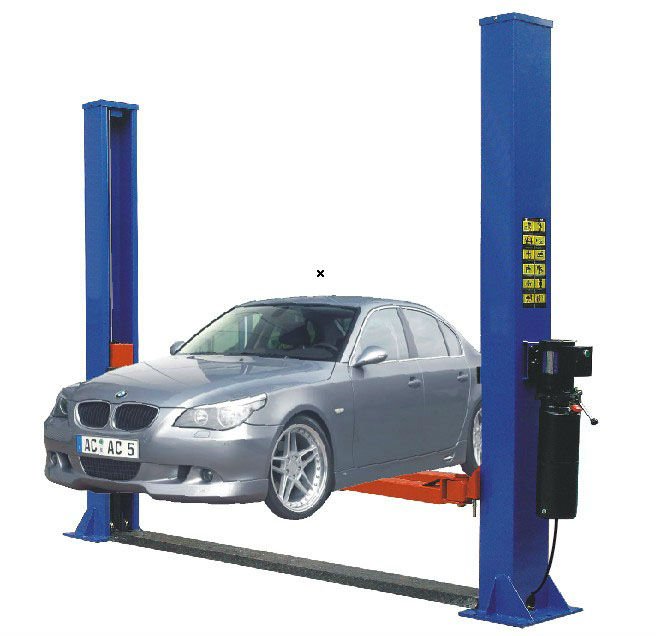

2 Post Gantry Car Lift
Features
A, Dual hydraulic cylinders, chain-driven lifting system;B, Strong and reliable steel cables assure the ascends and descends smoothly;
C, Two sides manual safety lock release system;
D, Asymmetric arms design provides more open-door clearance between pillars;
E, Economical but reliable cast-iron cover motor.
F, the following spare parts are optional: aluminum cover motor, imported pump and multi-voltage power supply.
Parameter
| Lifting Capacity | 7714lbs/3500kg |
| Lifting Height | 71"/1800mm |
| Lifting Time | 50 seconds |
| Overall Height | 111"/2816mm |
| Overall Width | 138"/3500mm |
| Width between Columns | 110"/2800mm |
| Motor Voltage | 220V/380V |
| Frequency | 50Hz/60Hz |
| Phase | 1ph/3ph |
| Net weight | 1417lbs/643kg |
