Duplex Station Prep Station

Description of China Painting Booth Prep Station

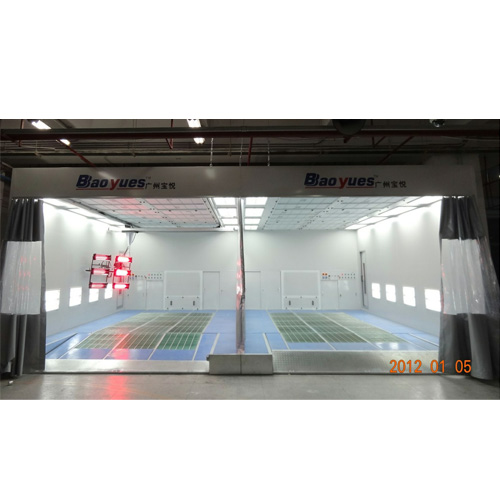

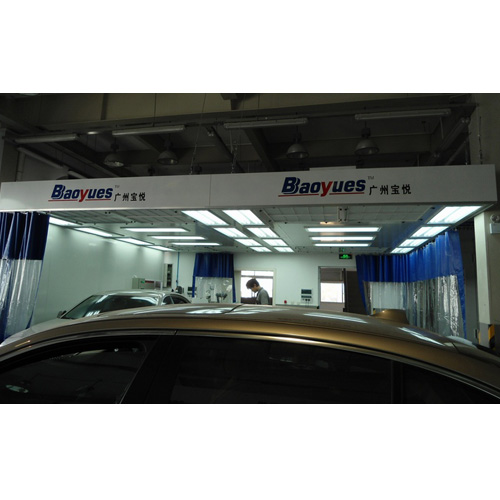

This double spray booth preparation station focus on dealing with sanding dust and other debris generated from production. It can also guarantee safe production. The China preparation station has recycle system with pulse filter, takes small location, has high recycle efficiency and easy to clean.

Features of China Painting Booth Prep Station

1. This double spray booth preparation station can improve working efficiency and time saving; can repair two cars at the same time in two prep stations.
2. The overall structure is light, novel and attractive. It has good strength, stiffness, stability and impact resistance.
3. The main functions of double spray booth preparation station is remove dust and waste air from maintenance workshop and polishing workshop to make sure the cleanness of working environment and improve maintenance quality.
4. The China painting booth prep station has slip resistant rubber mat on the top platform.
5. Dust generated during grinding is effectively limited to grinding room and collected by dust unit. And then they are exhausted after filtration.
6. The following spare parts of double spray booth preparation station are optional: infrared lamp, heating system, basement, recovery system, Siemens motor and Siemens electric components.

Parameters of China Painting Booth Prep Station

Outside Dimension 7550×3550×3100mm(L×W×H)
Inside Dimension 6300×3450×2650mm(L×W×H)
Plenum Dimension 6300×3450×450mm(L×W×H)
Basement No basement, 2 rows of pits for exhausting
Room Body Back side with 50mm EPS wallboard, the other 3 sides with PVC curtains
Light System Ceiling lights 8units×4pcs=32pcs×36W, with electronic ballasts
Generator Cabinet Exhaust from rear side; square steel frame, galvanized steel cover
Intake and Exhaust System 1 unit 5.5KW double intake centrifugal fan, model YDW-4.5S, air capacity: 15500 m 3/h, electric damper for exhausting
Purification System Pre-filter, high efficiency filter, exhaust fiberglass filter
Roof Galvanized steel plates
Control System Fan operation switch, lighting switch, emergency stop
Install Way Suspending steel hook from roof of building or steel column supporting
Total Power 6.7KW
