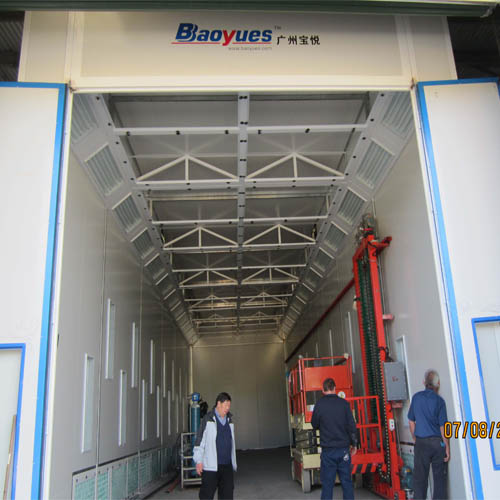

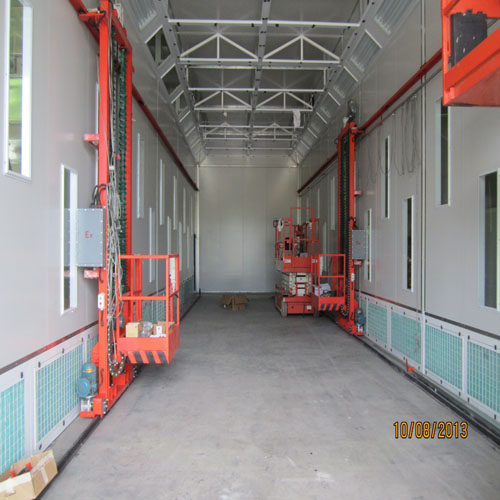

Side Downdraft Booth

Description

Side downdraft booth means exhaust paint airflow from the side walls. It is widely used for the painting of cars, furniture and steels. The air comes into the spray booth through filter device and exhaust from side walls. This China side downdraft paint booth is a kind of medium price spray booth. Because the mist is away from the booth body and operators can get rid of mists, painting effect and working environment are excellent.


Features of Side Downdraft Booth

1. The painting gas exhausts from side wall.
2. Lower cost than full downdraft spray booth
3. double-intake centrifugal fans
4. Pneumatic/electric damper for spraying
5. All panels of side downdraft booth have tongue and groove interlock structure.
6. Industry-leading light levels
7. Spray booth of China side downdraft paint booth has specific and dual voltage 36-watt light fixtures.
8. Booths include installation instructions, fan, motor & drive, fasteners, hardware, and sealant necessary for assembly.
9. Control panel and other electric components can be purchased separately.
10. The following spare parts of side downdraft booth are optional: Both sides of exhaust wall, heat recovery system and PLC control system.


Working principles of China Side Downdraft Paint Booth

Outside fresh air--heating generators through pre--filter system-plenum--filtered by ceiling filter—for praying—exhaust from single side wall This way can keep exhaust gas away from painting goods and remove gas away from workers.


Parameters of Side Downdraft Booth

Item Detailed Specification
Inside dimension 9860×5000×3700 mm (L×W×H)
Outside dimension 10000×6896×4300 mm (L×W×H)
Front door Folding door,4 folds, 4400×3300 mm (W×H), galvanized steel frame, filled with EPS inside, color: Blue
Emergency door 1 unit, 800×2000mm (W×H), color: white
Basement Without basement, exhaust from side wall
Room body Top setting steel composite beam, Thickness: 70mm, width: 1150mm, tongue and groove structure, 0.376mm color steel with EPS insulation inside, color: white.
Light Ceiling Lights: 12Units×4Pcs=48Pcs×36W, side light: 14Units×4Pcs=56Pcs×36W, lighting boxes are powder coated, with electronic ballasts.
Generator cabinet Intake from side upper, exhaust from back upper, galvanized steel frame; color steel panel covered, filled with heat preservation material in the middle.
Intake and Exhaust system Inlet:2 sets×7.5KW double intake centrifugal fans,model:YDW4.5M, air capacity: 21000m3/h
Outlet:1 set×11KW double intake centrifugal fans, motor outside, belt dirve,model:TAE-710H,air capacity for each fan: 36000m3/h. with manual damper
Heating system 1 unit RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 26000kcal/h.
Purification system Pre-filter, ceiling filter, fiber glass filter, activated carbon filter
Roof Galvanized steel
Control system Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge, adjustable electric exhaust damper, Exhaust star-delta motor start.
Total power 30KW
