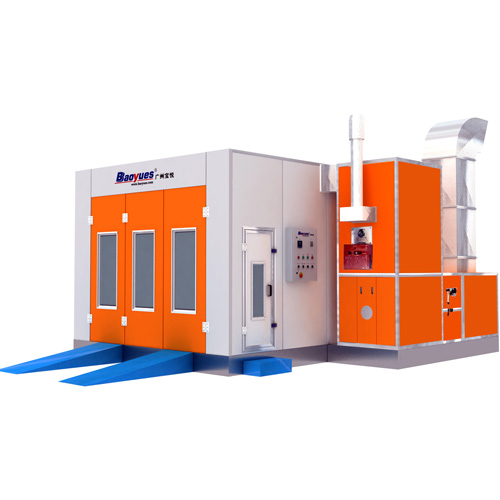

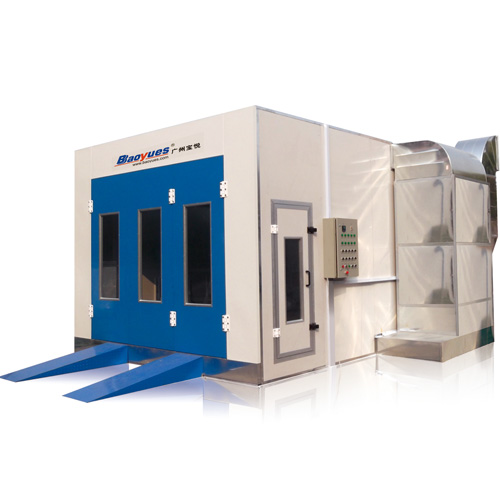

Dry Spray Booth

Description

Dry filter paint booth needs to filter the air with filter cotton for painting. Compared with water curtain spray booth, the whole painting process of China dry spray booth has no water and paint particles after painting can’t stay in the air but exhaust out from bottom outlet. This continuous cycle can make air clearance rate reach to 98% in painting room. This air sent into has certain pressure which can form constant air flow and get rid of the excess paint. This air can guarantee the painting quality.


Features of China Dry Spray Booth

1. All filters of dry filter paint booth use dry type
2. 0.376mm color steel with EPS inside for wall panel
3. Double intake centrifugal fan, with air capacity of 12500m³/h
4. Electric damper for spraying to baking cycle.
5. All panels of dry filter paint booth have tongue and groove interlock structure.
6. Industry-leading light levels
7. Spray booth specific, dual voltage 36-watt light fixtures
8. Booths of China dry spray booth include installation instructions, fan, motor & drive, fasteners, hardware, and sealant necessary for assembly
9. Control panel and other electric components can be purchased separately.
10. The following spare parts of dry filter paint booth are optional: Siemens motor, heat recovery system, PLC control system, VFD control and Water-borne paint system.


Parameters of China Dry Spray Booth

Inside dimension 6900×3900×2650mm(L×W×H)
Outside dimension 7000×5350×3400mm(L×W×H)
Front door Folding door, 3 folds, 3000×2600 mm (W×H), without frame cover, color: blue.
Emergency door 1 unit, 650×1800mm(W×H), color: white
Basement Galvanized steel assemble, 300mm high, quadrate steel support, full grilles made by flat bar and twisted steel, galvanized. 2 ramps, 750×2000mm/pc.
Wall Panels Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.376mm color steel with polystyrene (EPS) insulation inside, color: white.
Light Ceiling Lights: 8Units×4Pcs=32Pcs×36W, Side Lights: 8Units×2Pcs=16Pcs×18W, with electronic ballasts, lighting boxes are powered coated. Illuminate: ≥1000LUX
Generator cabinet Intake from side upper, exhaust from back upper, quadrate steel frame; white coated steel covered, filled with heat preservation material inside.
Intake and Exhaust system Inlet: 2×3KW double-intake centrifugal fans, model YDW4.5M1, air capacity for each fan: 10500m3/h.
Outlet: 1×4KW double-intake centrifugal fan, model YDW4.5L1, air capacity: 12500m3/h.
Heating system RIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 200000kcal/h, Max temperature: 80℃.
Purification system Pre-filter, ceiling filter, fiber glass filter, activated carbon filter
Roof Galvanized steel.
Control system Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, temperature limit controller, exhaust with manual damper, all motors are normal start.
Total Power 12KW
