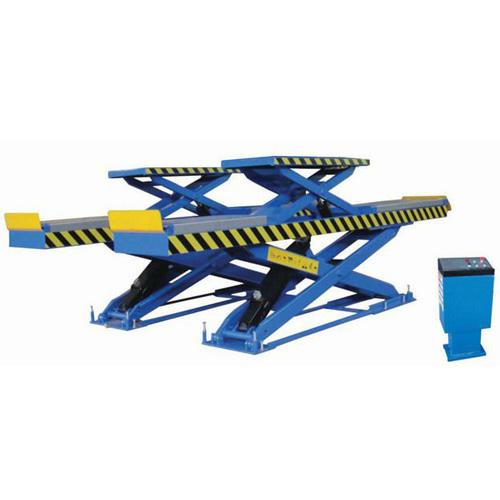

4 Wheel Scissor Car Lift BY-350D
Description
The execution part of four wheel alignment scissor car lift adopts stacked bar form and power-driven mechanical transmission structure. The China portable scissor car lift is widely used for the maintenance of large vehicles. Its lifting speed is moderate and doesn’t take up parking spaces. Our car lift is a good choice for large work intensity. Because of its simple structure and good synchronization, this machine is usually used as four wheel positioning platform.Features of Four Wheel Alignment Scissor Car Lift
1. In-ground installation2. Ideal choice for alignment and chassis checking and vehicle maintenance
3. Adjustable turntable position of China portable scissor car lift is suitable for more types of vehicles
4. Its central jack with a maximum of 500mm lifting height is extensible for longer vehicles
5. Aluminum motor of four wheel alignment scissor car lift prevents overheated
6. The mechanical safety self-lock system for safety while lifting
7. Pneumatic release system decreases noise emitted during service work
8. Optional: turntable is optional for China portable scissor car lift.
Parameter of Four Wheel Alignment Scissor Car Lift
| Lifting Capacity | 7714Lbs/3500kg |
| Lifting Capacity | 7714Lbs/3500kg |
| Secondary Lifting Height | 20"/500 |
| Lifting Height | 79"/2000mm |
| Lifting Time for jack | 20seconds |
| Lifting Time for Large Scissor | 30seconds |
| Min Height | 13"/330mm |
| Air Source Pressure | 5-6kg/cm² |
| Platform Width | 24"/620mm |
| Width between Two Platforms | 33.5"/850mm |
| Overall Length | 165"/4200mm |
| Motor Voltage | 220V/380V |
| Frequency | 50Hz or 60Hz |
| Phase | 1Ph/3Ph |
| Net Weight | 3760Lbs/1706kg |
