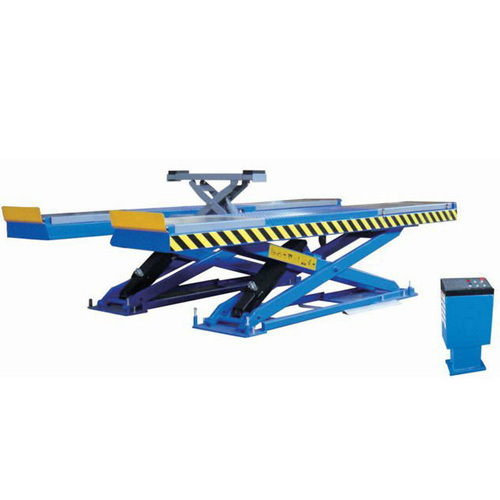

4 Wheel Scissor Car Lift BY-350A
Description:
The hydraulic scissor car lift adopts half electric and half mechanical wheel structure. It is widely used for the maintenance of large vehicles. This truck-mounted scissor lift has moderate speed and it can repair vehicles with fixed shapes and burden large working intensity (such as passenger buses). Because of its simple structure and excellent simultaneity, it is widely used as the platform of four-wheel positioning apparatus.Features of Hydraulic Scissor Car Lift
1. In-ground installation2. Ideal choice for alignment, chassis checking and vehicle maintenance use
3. Adjustable turntable position is suitable for more types of vehicle.
4. Its central jack with a maximum of 500mm lifting height is extensible for longer vehicles
5. Aluminum motor of truck-mounted scissor lift prevents overheated.
6. The mechanical safety self-lock system for safety while lifting
7. Pneumatic release system of hydraulic scissor car lift decreases noise.
8. The truck-mounted scissor lift is equipped with jack trolley guide rail and the electric jack, pneumatic jack or manual jack are optional.
Parameter of Hydraulic Scissor Car Lift
| Lifting Capacity | 7714Lbs/3500kg |
| Secondary Lifting Height | 20"/500 |
| Lifting Height | 79"/2000mm |
| Lifting Time for jack | 20seconds |
| Lifting Time for Large Scissor | 30seconds |
| Min Height | 13"/330mm |
| Air Source Pressure | 5-6kg/cm² |
| Platform Width | 24"/620mm |
| Width between two platforms | 33.5"/850mm |
| Overall Length | 165"/4200mm |
| Motor Voltage | 220V/380V |
| Frequency | 50Hz or 60Hz |
| Phase | 1Ph/3Ph |
| Net Weight | 3760Lbs/1706kg |
