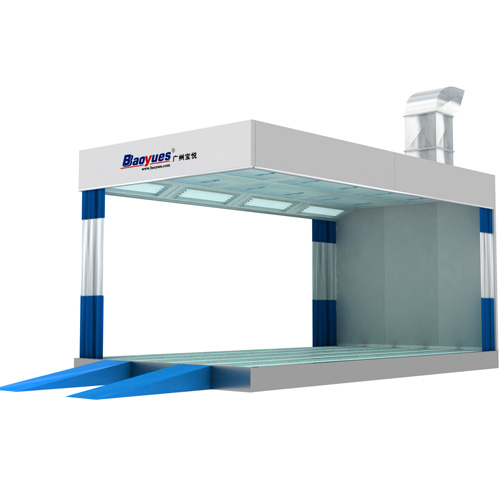

Prep Station BY-30


Spray booth prep station BY-30 can meet the modern construction needs of repairing shop. It can offer a dust free working environment for automotive polishing, maintenance, pre-treatment (prime coating) and paint spraying. The China paint booth prep station can improve the working environment of sheet spraying workshop and clean the dust, waste gas and paint fog produced during production. It is ideal environmental treatment equipment that is suitable for sheet spraying needs.

Features of China Paint Booth Prep Station

The spray booth prep station is equipped with 300mm galvanized steel basement, full grilles made by flat bar and twisted steel then galvanized. 2 ramps, external setting, 2000x750mm (LxW), surface are painted.

Advantages of China Paint Booth Prep Station

1. Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle.
2. The spray booth prep stations speed up the drying process and improve the overall quality of your finished product.
3. Above ground exhaust box and pit style downdraft of China paint booth prep station allows easy integration into new or existing body shop layouts.
4. The following spare parts are optional: heating system, infrared lamp, recovery system, Siemens motor and Siemens electric components.

Parameters of Spray Booth Prep Station

Item Detailed Specification

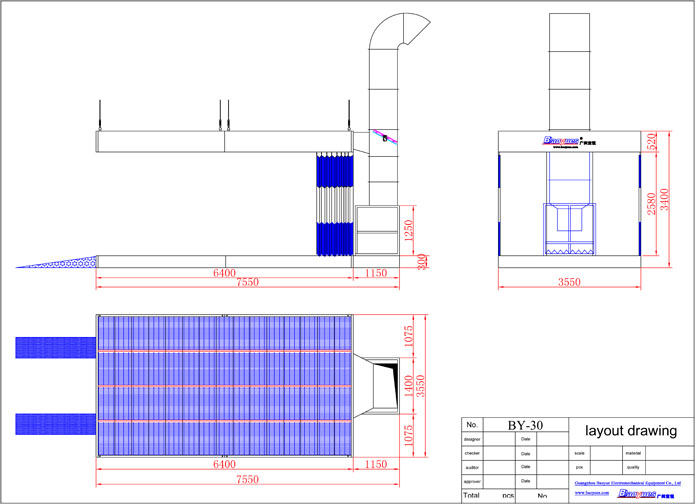

Inside dimension 6300×3450×2650 mm (L×W×H)
Outside dimension 7550×3550×3400mm (L×W×H)
Plenum dimension 6300×3450×450 mm (L×W×H)
Steel basement Steel basement, 300mm high, full grilles, twisted steel grilles, painted, 2 ramps, size of each: 2000×750mm(L×W)
Room body Back side 50mm EPS wall panel, the other sides PVC curtain.
Light Ceiling Lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, lighting boxes are powered coated.
Generator cabinet Exhaust from back side, galvanized steel frame; white machine-made panel covered, filled with heat preservation material inside.
Intake and Exhaust system 1×5.5KW turbo fan, air capacity: 18000m3/h, with electric damper.
Purification system Pre-filter, ceiling filter, fibreglass filter.
Roof Galvanized steel
Control system Fan switch, lighting switch, emergency stop.
Installs way Hooked from roof by steel cable or supported by steel column.
Total power 6.7KW (Power supply 1×220V, 3×380V, 50HZ)
Unit price USD/set FOB Guangzhou
