BY-320

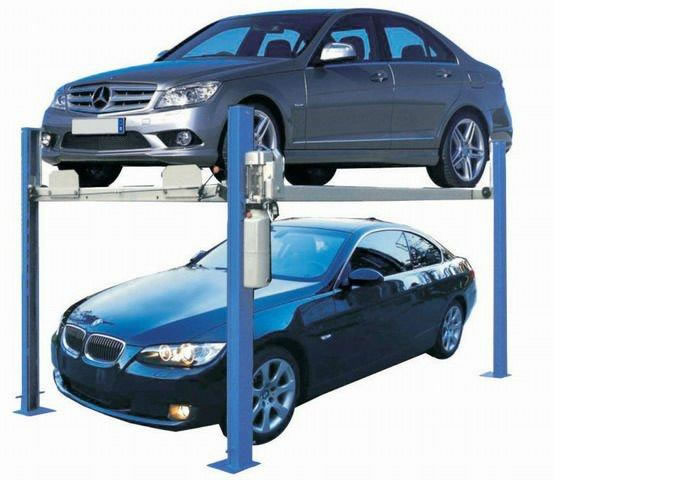

1. BY-320 4 Post Alignment Lift
is an ideal choice for simple vehicle services and vehicle maintenance for garage and parking lots.
2. The single point lock is simple and convenient.
3. The low profile design is for easier driving-in.
4. The mechanical self lock guarantees its safety while lifting.
5. Aluminum cover motor, 24V safety voltage against unexpected injury.
6. The optional mobile kits can make the whole lift move easily.

Parameters

Lifting Capacity	7000Lbs/3200kg
Lifting Height	1910mm
Lifting Time	60seconds
Min Height	5"/125mm
Overall Width	2534mm
Overall Length	4549mm
Motor Voltage	220V/380V
Frequency	50Hz or 60Hz
Phase	1Ph/3Ph
Net Weight	2644Lbs/1200kg
