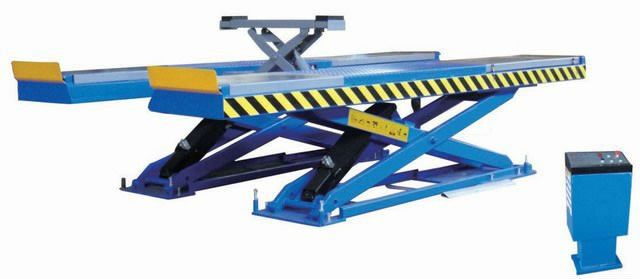

4 Wheel Scissor Car Lift BY-350A

The hydraulic scissor car lift adopts half electric and half mechanical wheel structure. It is widely used for the maintenance of large vehicles. This truck-mounted scissor lift has moderate speed and it can repair vehicles with fixed shapes and burden large working intensity (such as passenger buses). Because of its simple structure and excellent simultaneity, it is widely used as the platform of four-wheel positioning apparatus.

Features of Hydraulic Scissor Car Lift

A, In-ground installation
B, Ideal choice for alignment, chassis checking and vehicle maintenance use
C, Adjustable turntable position is suitable for more types of vehicle.
D, Its central jack with a maximum of 500mm lifting height is extensible for longer vehicles
E, Aluminum motor of truck-mounted scissor lift prevents overheated.
F, The mechanical safety self-lock system for safety while lifting
G, Pneumatic release system of hydraulic scissor car lift decreases noise.
H, The truck-mounted scissor lift is equipped with jack trolley guide rail and the electric jack, pneumatic jack or manual jack are optional.

Parameter of Hydraulic Scissor Car Lift

Lifting Capacity	7714Lbs/3500kg
Secondary Lifting Height	20"/500
Lifting Height	79"/2000mm
Lifting Time for jack	20seconds
Lifting Time for Large Scissor	30seconds
Min Height	13"/330mm
Air Source Pressure	5-6kg/cm²
Platform Width	24"/620mm
Width between two platforms	33.5"/850mm
Overall Length	165"/4200mm
Motor Voltage	220V/380V
Frequency	50Hz or 60Hz
Phase	1Ph/3Ph
Net Weight	3760Lbs/1706kg
